Portable Drone Jamming Device Backpack Signal Jammer Shockproof

Brand Name : HYH

Model Number : DKSW-8D

Place of Origin : Chengdu

MOQ : 1

Price : Negotiable

Payment Terms : T/T,D/P,Western Union

Supply Ability : 50sets/Month

Delivery Time : 30days

Power Output : 30W

Jamming Range : 2 kilometers

Power Supply : Built-in rechargeable battery

Direction Of Defense : Omnidirectional 360°

Interference Frequency : 433M 900M 1.2G 1.5G 2.4G 5.8G

Battery Life : Up to 2 hours

Cooling System : Built-in fan

Whole Machine Power : 300W~350W (can be customized)

Materials : Waterproof and shockproof materials

Dimensions : 45cm x 30cm x 15cm

Antennas : 5 high-gain directional antennas

Operating Temperature : -10°C to +50°C

Jamming Distance : Up to 1km

Jamming Modes : 5 modes (customizable)

Working Hours : 30 mins (duration of launch)

Minimum Detection Range : 10 m

Operating Frequency Band : X Band

Range Resolution : 1-10 m

Scanning Range Pitch : 0°-40°

Antenna Diameter : 1-5 m

Blind Range : 180m

Scan Mode : Sector Scan

Antenna Rotation : 360 Degrees

Scanning Range Azimuth : 360°

Operating Altitude : 0-10 km

Receiver Sensitivity : -120 dBm

Pulse Width : 1-10 μs

Transmitter Power : 1-10 kW

Pulse Repetition Frequency : 100-1000 Hz

Range : Up To 100 Km

Contact Now

Portable Anti-Drone System | 50W Output & 20A Built-in Battery for 8-Hour Operation

Product Overview

With the rapid growth of the drone market, drones are widely used in various aspects of society. However, their misuse, such as unauthorized flights in restricted zones, drug delivery, and military applications, has raised significant concerns. The DKSW-8D is designed to detect, deter, and force-land rogue drones within visual range. Custom-built to meet client needs, this backpack-style device features a built-in battery for extended portability and includes both omnidirectional and handheld directional antennas for versatile operation. Utilizing narrowband interference and RF suppression technologies, it disrupts the communication link between the drone and its controller, forcing the drone to return or land. Additionally, it blocks video transmission, preventing privacy breaches and securing critical areas.

Key Features

  1. Portable Backpack Design: Lightweight and easy to carry.

  2. Built-in Battery: Integrated power supply for unrestricted use.

  3. Single-Channel Control: Simplified operation with independent switches.

  4. Dual Antenna Modes: Omnidirectional and directional antennas for flexible deployment.

  5. Optimized Antenna Performance: Enhanced countermeasure range.

  6. Battery Display: Real-time power level monitoring.

  7. Optional External Battery: Extended runtime (additional cost).

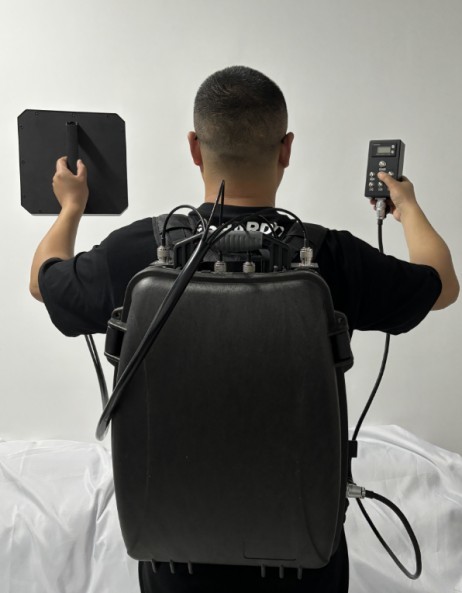

Product Images

Portable Drone Jamming Device Backpack Signal Jammer Shockproof

Portable Drone Jamming Device Backpack Signal Jammer Shockproof

Technical Specifications

Parameter Details
Output Frequency 433M: 428-438MHz, 900M: 860-930MHz, 1.2G: 1160-1280MHz, 1.4G: 1400-1450MHz,
1.5G: 1550-1620MHz, 2.4G: 2400-2500MHz, 5.2G: 5150-5350MHz, 5.8G: 5725-5850MHz
Average Output Power 50W/47dbm
Channel Output Power 20dbm/30KHz (min)
Power Supply AC220V-DC5V
Battery Capacity 20A
Device Weight 15kg
Packaged Weight 35kg
Package Dimensions 75×45×42 cm

Operation Instructions

  1. Inspect the device for damage and verify all accessories are included.

  2. Connect antennas to the corresponding ports and secure them tightly.

  3. Attach the control handle to the main unit.

  4. Check the battery level using the display.

  5. Press all function buttons; indicator lights will activate.

  6. For directional use, aim the antenna at the target drone.

  7. The device takes effect within 30 seconds, forcing the drone to land or return.

  8. After use, press the function buttons to turn off the indicators.

Package Contents

Item Quantity
Flight Case 1
Main Unit 1
Omnidirectional Antennas 8
Directional Antenna 1 (optional)
Control Handle 1
Connection Cable 1
Power Adapter 1

Warranty

1-year warranty for non-human-induced damages.

Why Choose DKSW-8D?

  • Portability: Backpack design for easy transport and deployment.

  • Versatility: Dual antenna modes for diverse operational needs.

  • Efficiency: Rapid response within 30 seconds.

  • Security: Blocks video transmission to protect privacy.
